G.E. Schmidt Catalog

The G.E. Schmidt catalog covers the full range of resistance welding equipment and consumables we distribute across North America, the UK, and Mexico. Use the slider to browse the current edition, or download the PDF for offline reference and internal sharing.

The catalog includes ProLine pedestal spot and projection welders, SEKI nut and bolt feeders, Kyokutoh tip dressers and changers, Entron and Harms & Wende weld controls, spot and projection welding electrodes, NVS+ weld nut monitoring, the SmartForce push-out test system, and Endurance Ceramics products including Doceram ceramic contact tips and locating pins.

Catalog Download

If PDF downloads aren’t permitted, browse the catalog below.

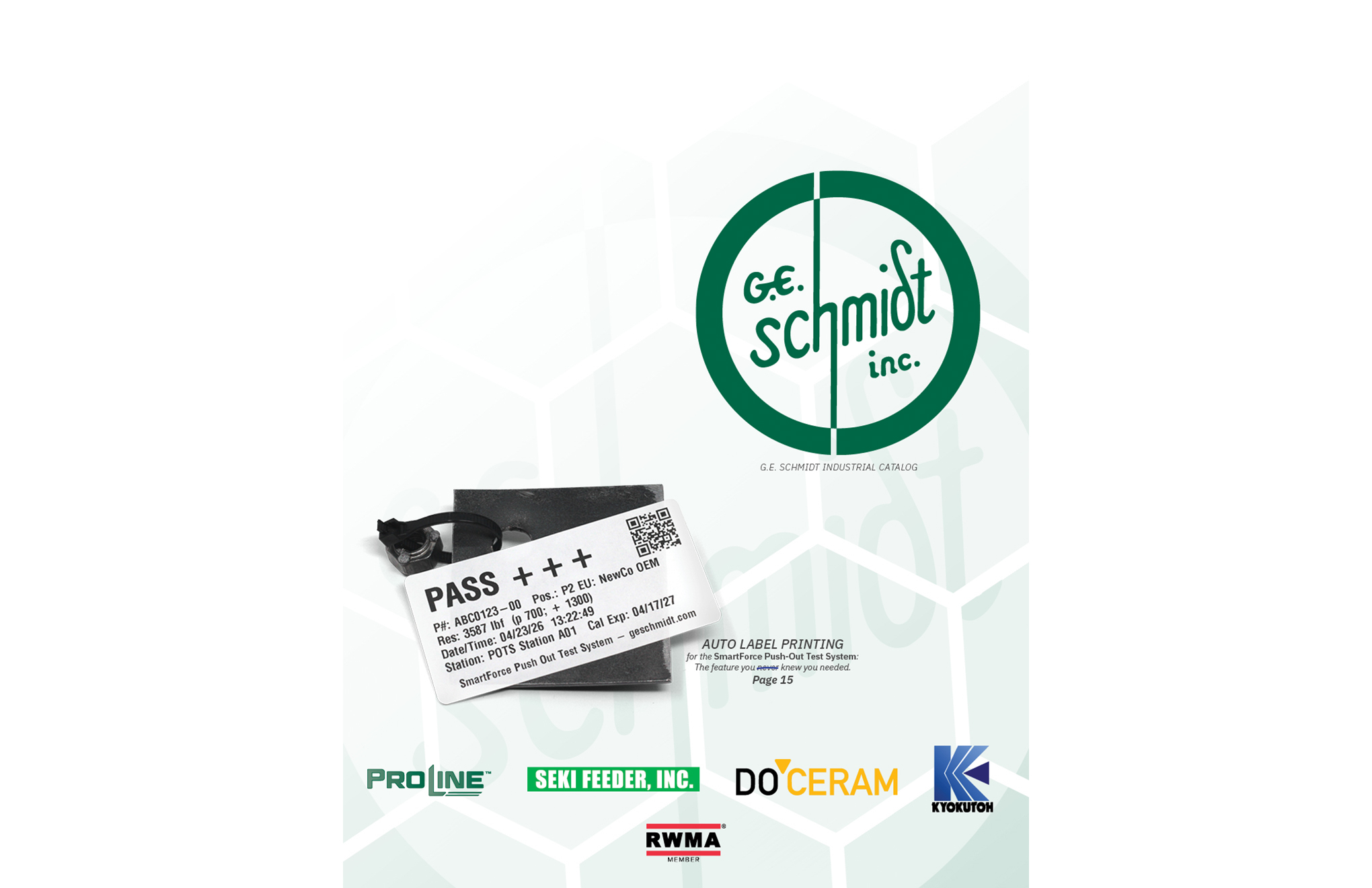

  • G.E. Schmidt industrial welding catalog cover page

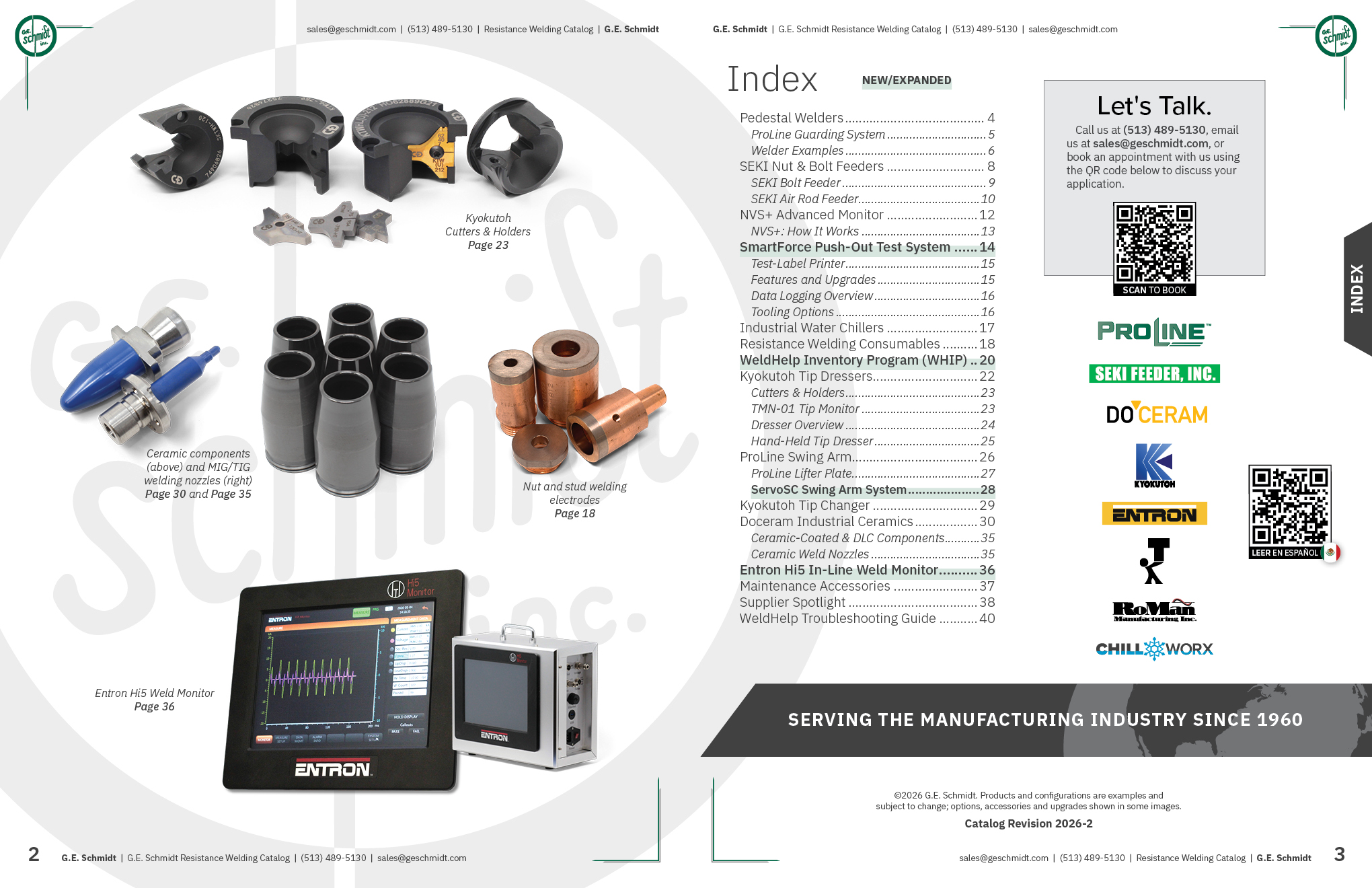

  • Catalog index and product line logos, pages 2–3

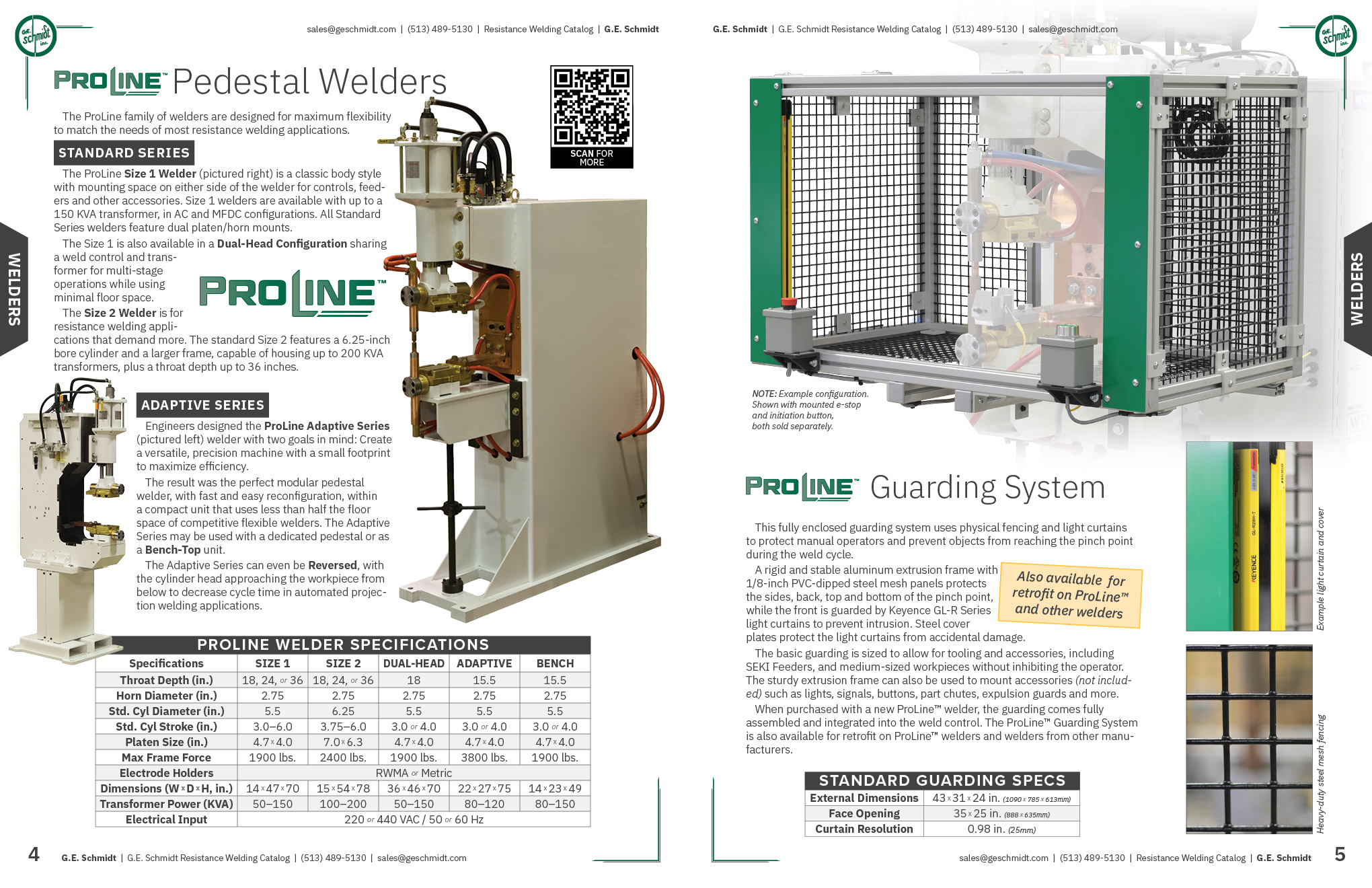

  • ProLine pedestal welders and guarding system with light curtains, pages 4–5

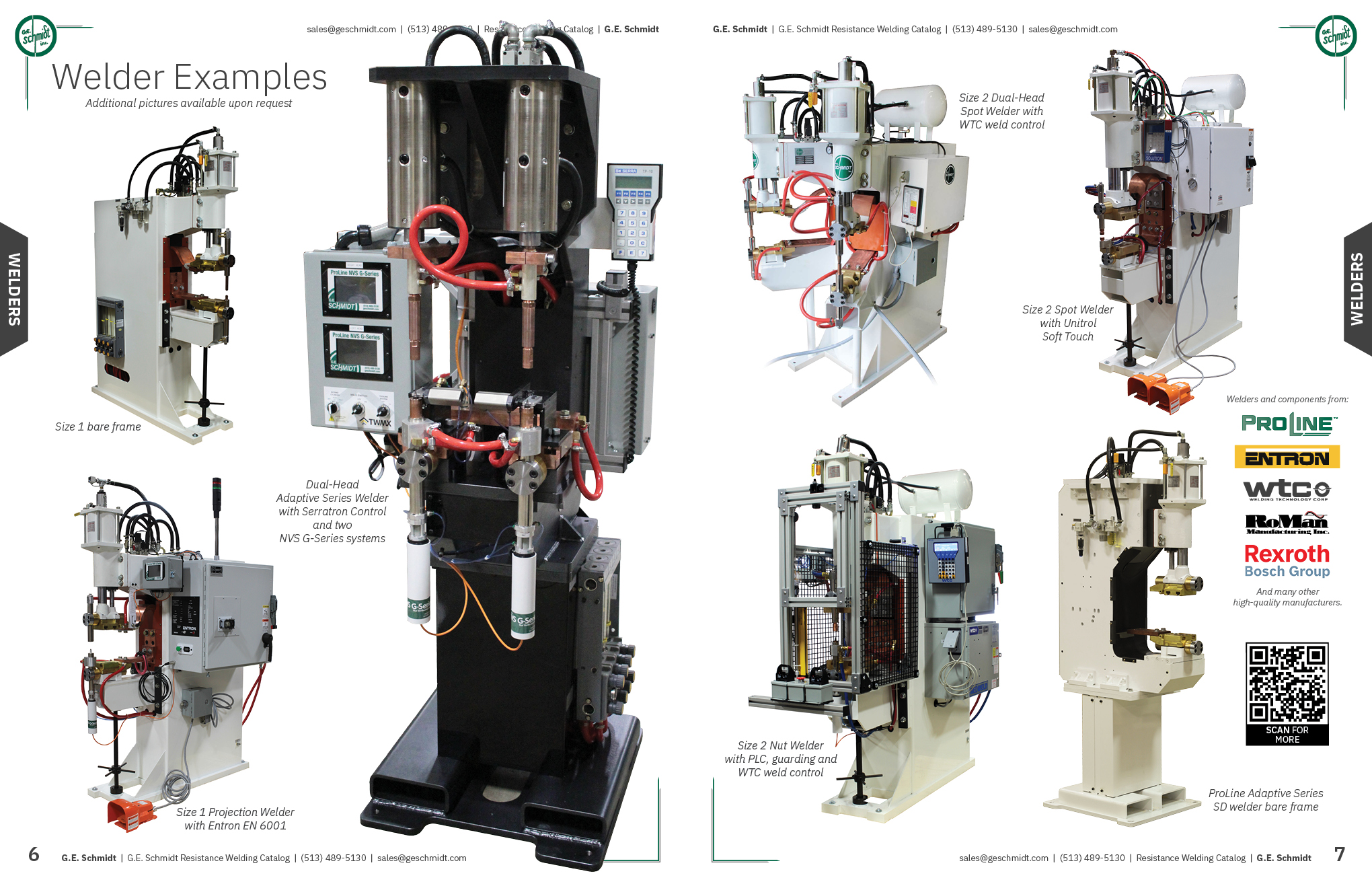

  • Resistance welder configuration examples: dual-head, spot, and nut welders, pages 6–7

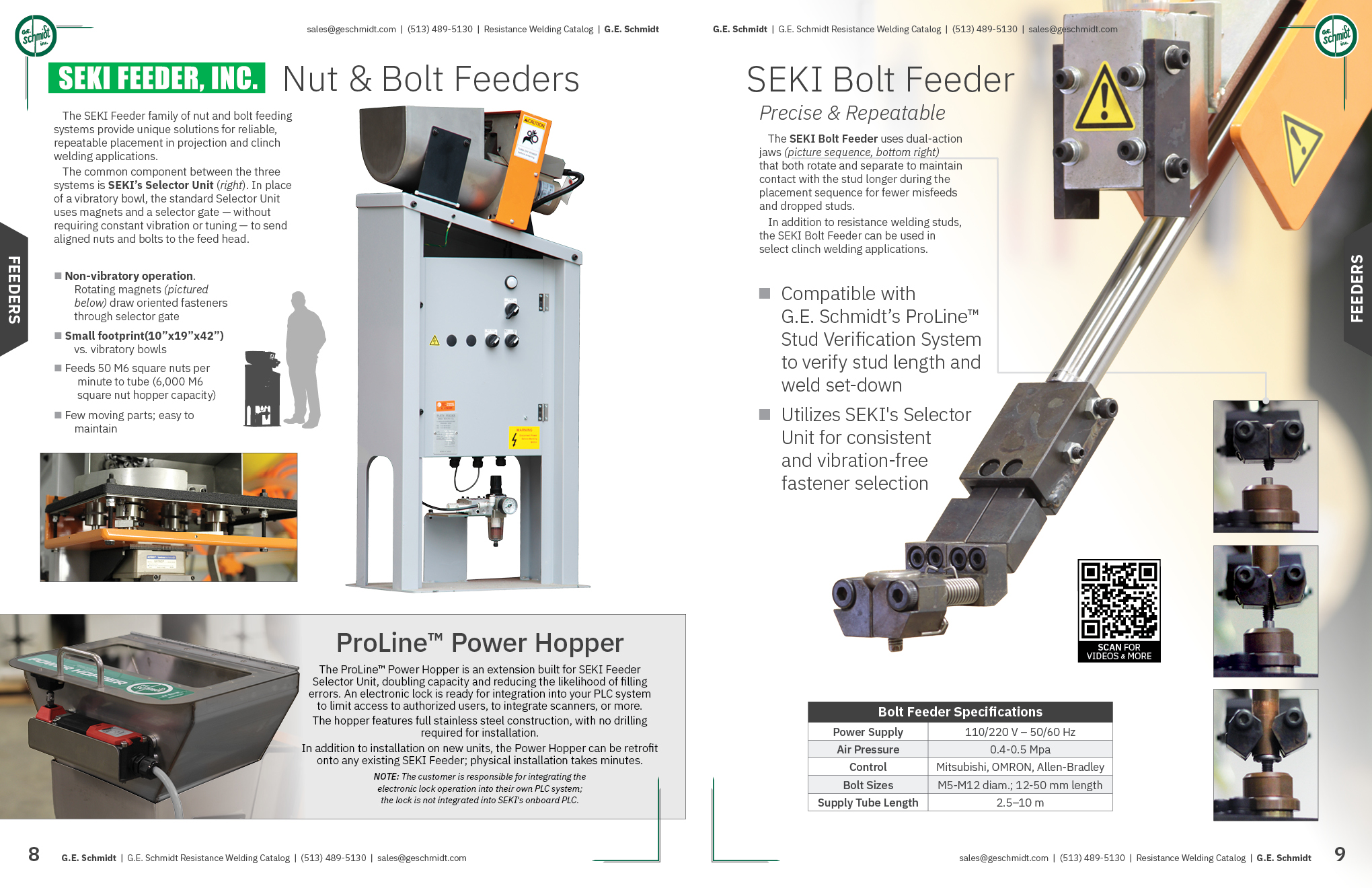

  • SEKI Feeder nut and bolt feeders; Bolt Feeder with dual-action jaw feed head, pages 8–9

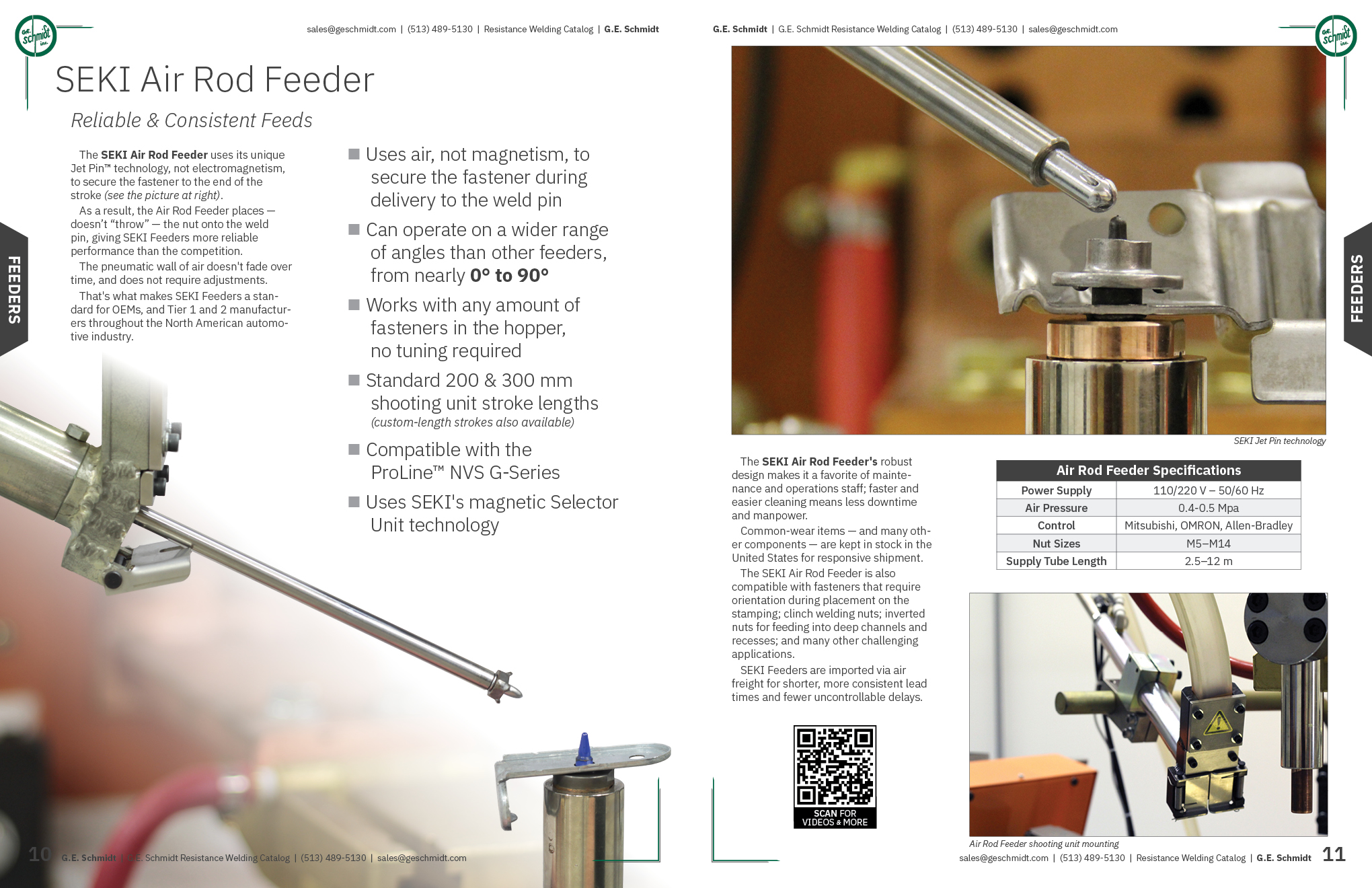

  • SEKI Air Rod Feeder using Jet Pin pneumatic fastener delivery, pages 10–11

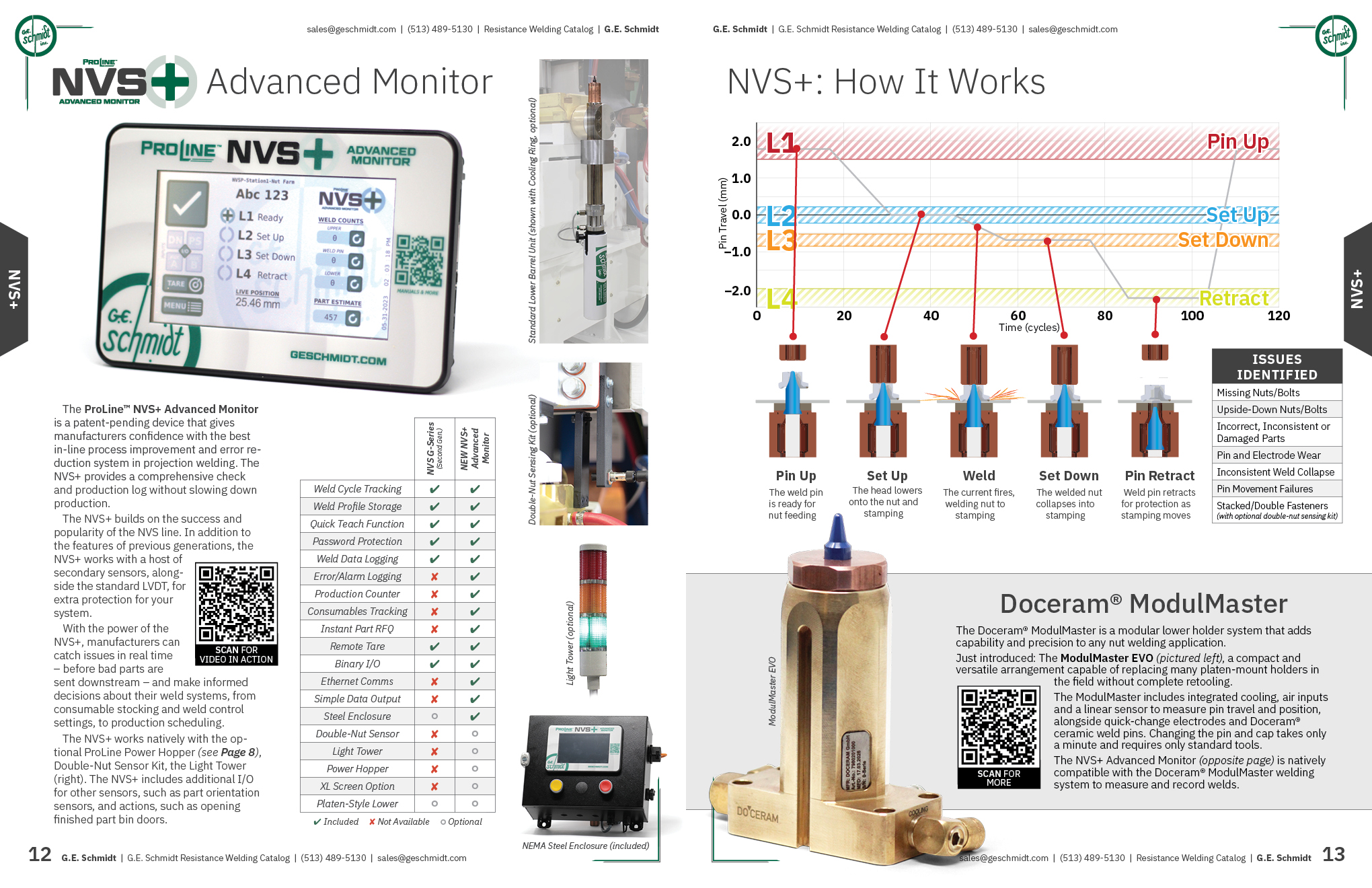

  • ProLine NVS+ Advanced Monitor weld cycle diagram and touchscreen, pages 12–13

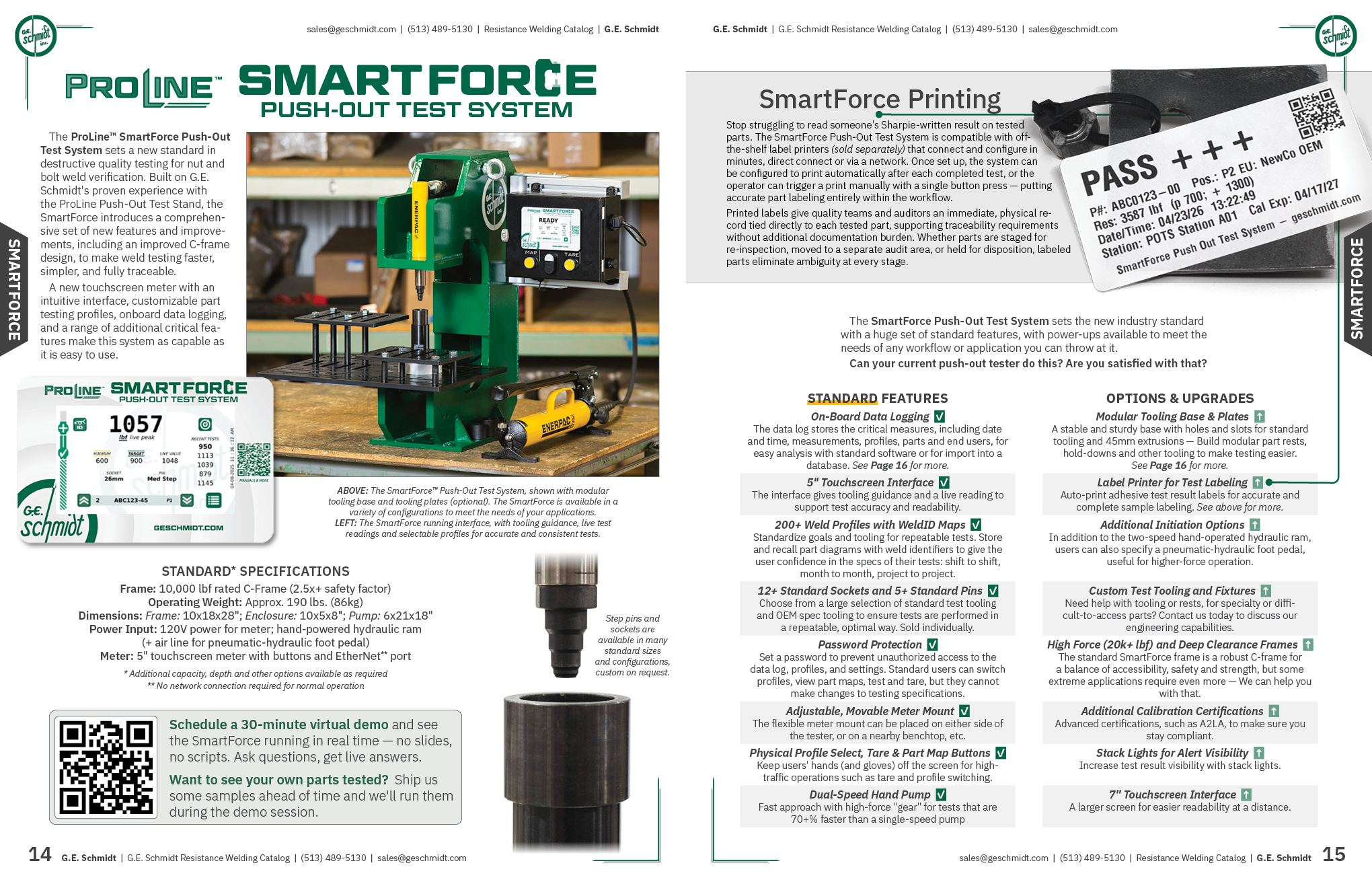

  • SmartForce Push-Out Test System with auto label printing, pages 14–15

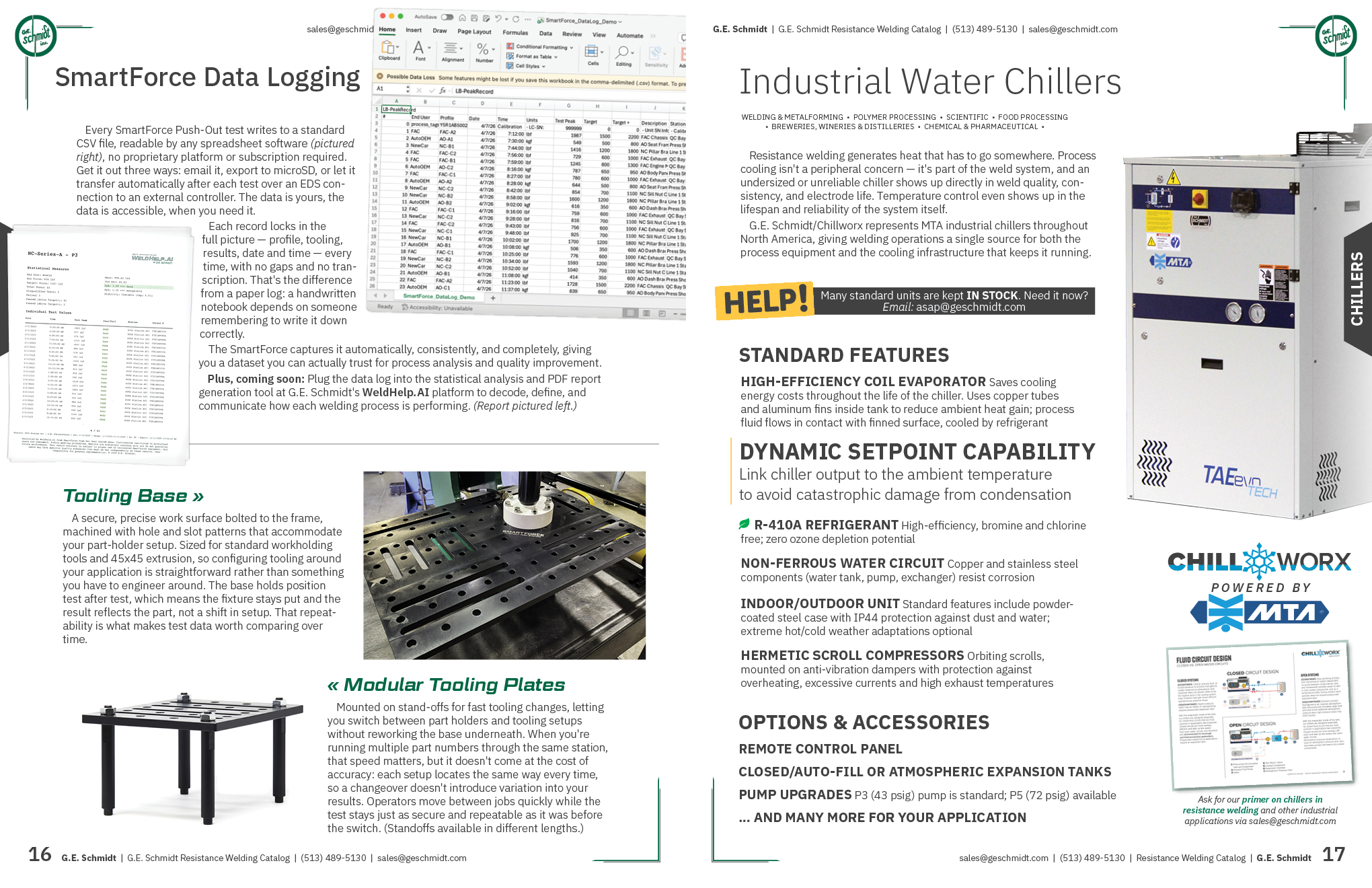

  • SmartForce data logging spreadsheet and industrial water chiller unit, pages 16–17

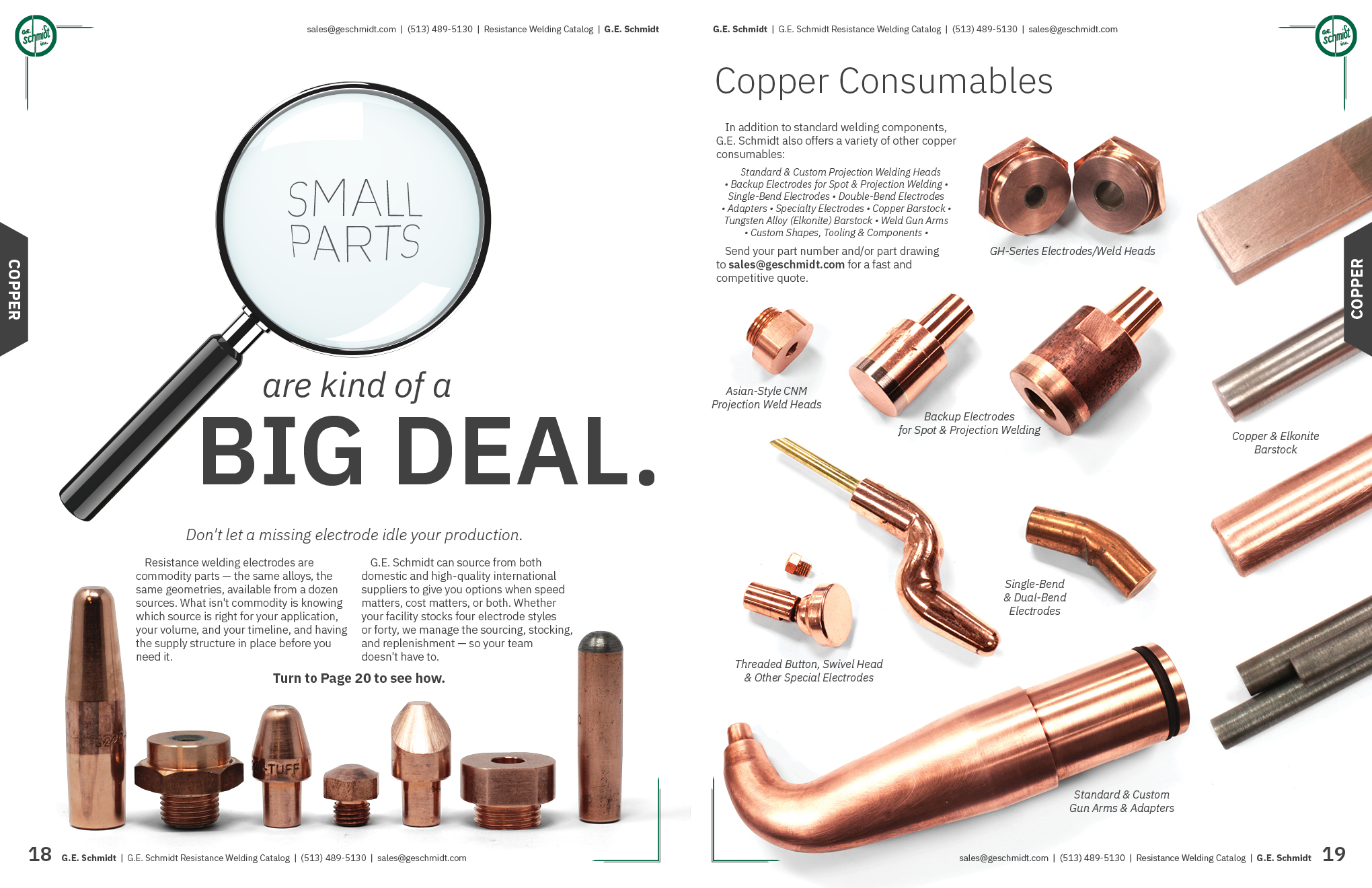

  • Copper electrodes, weld heads, and gun arm consumables, pages 18–19

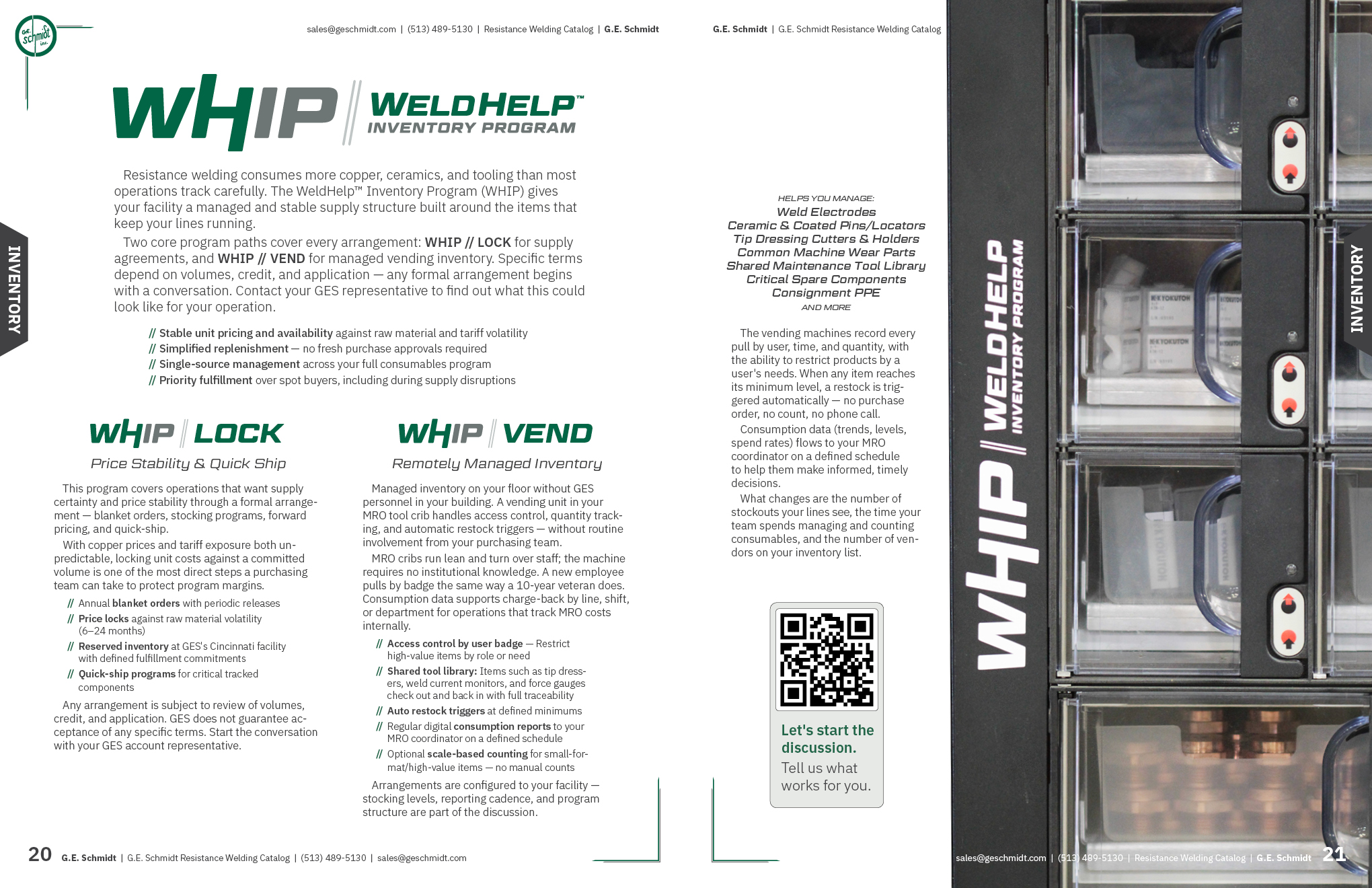

  • WeldHelp Inventory Program vending machine for consumables management, pages 20–21

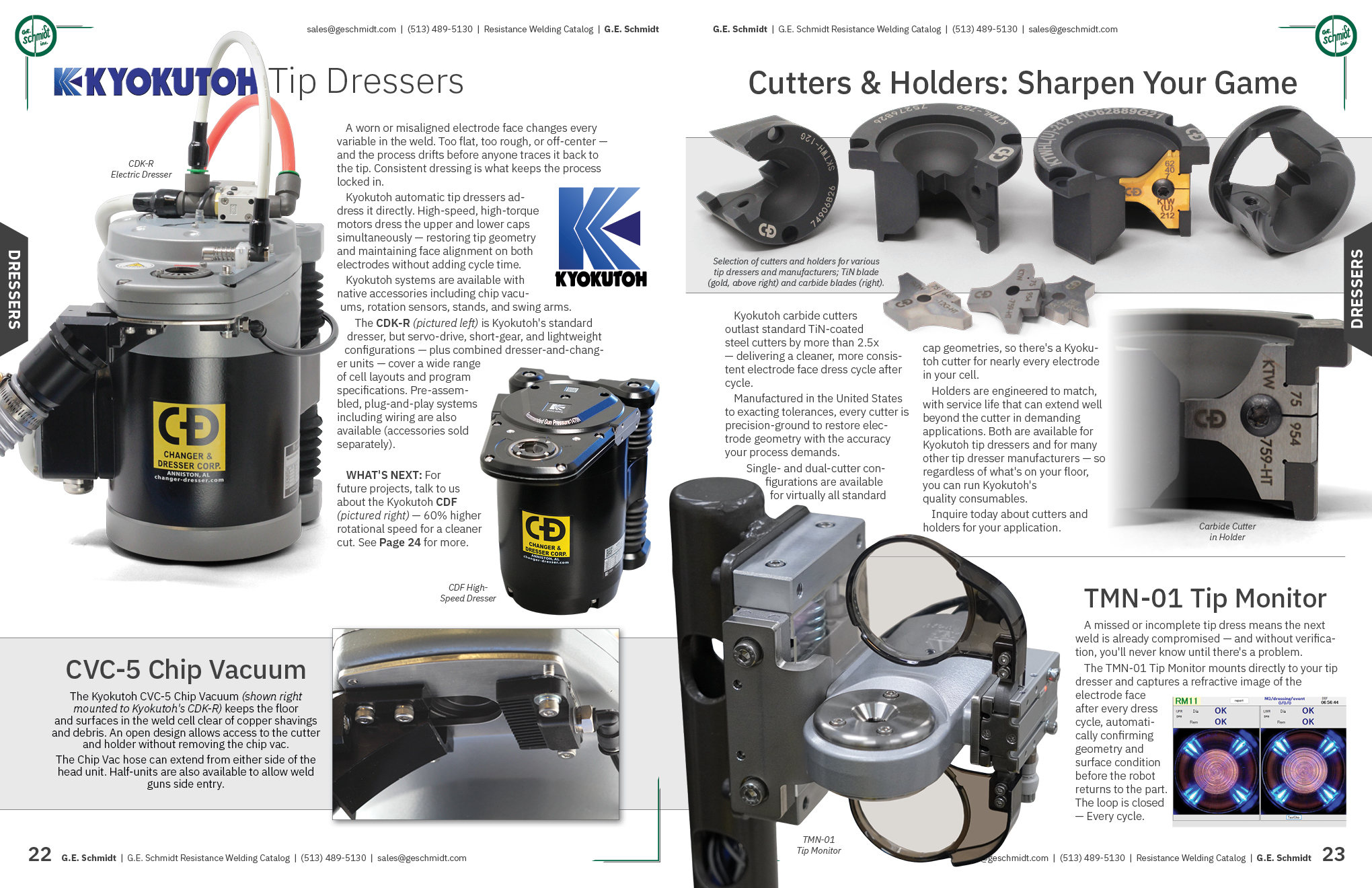

  • Kyokutoh automatic tip dresser with cutters and holders, pages 22–23

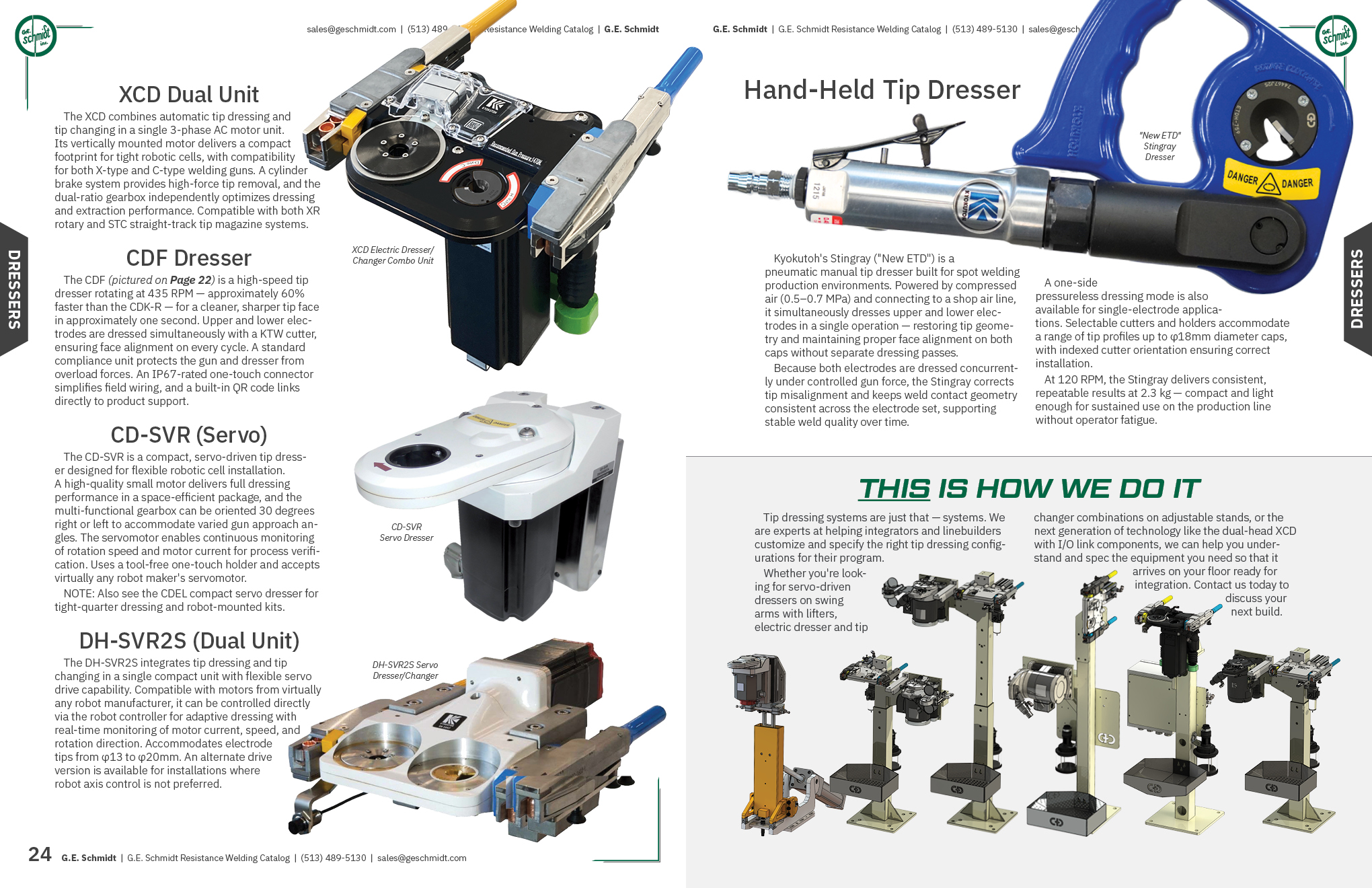

  • Kyokutoh XCD dresser-changer combo and pneumatic hand-held tip dresser, pages 24–25

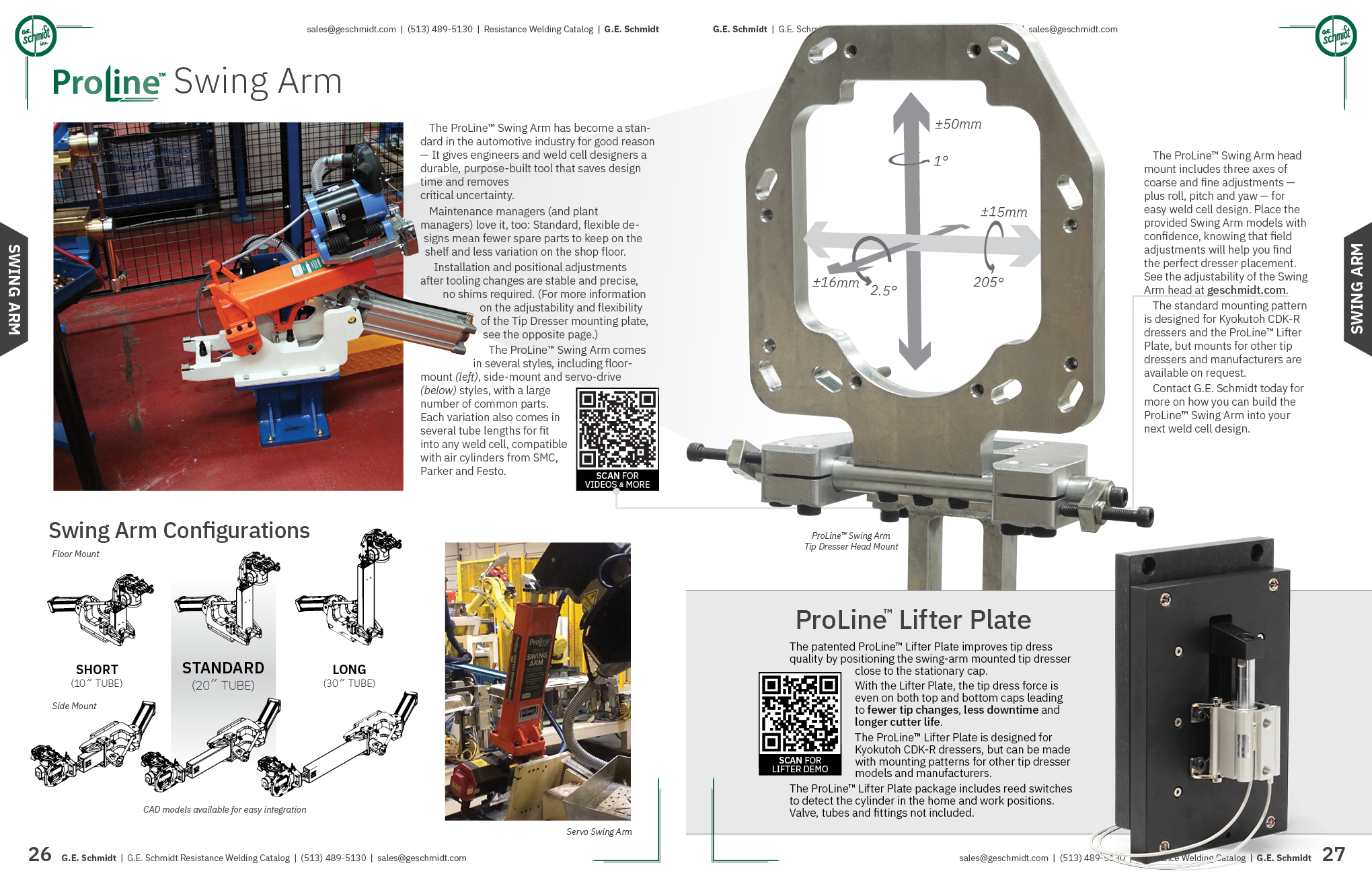

  • ProLine Swing Arm tip dresser mount with adjustment diagram, pages 26–27

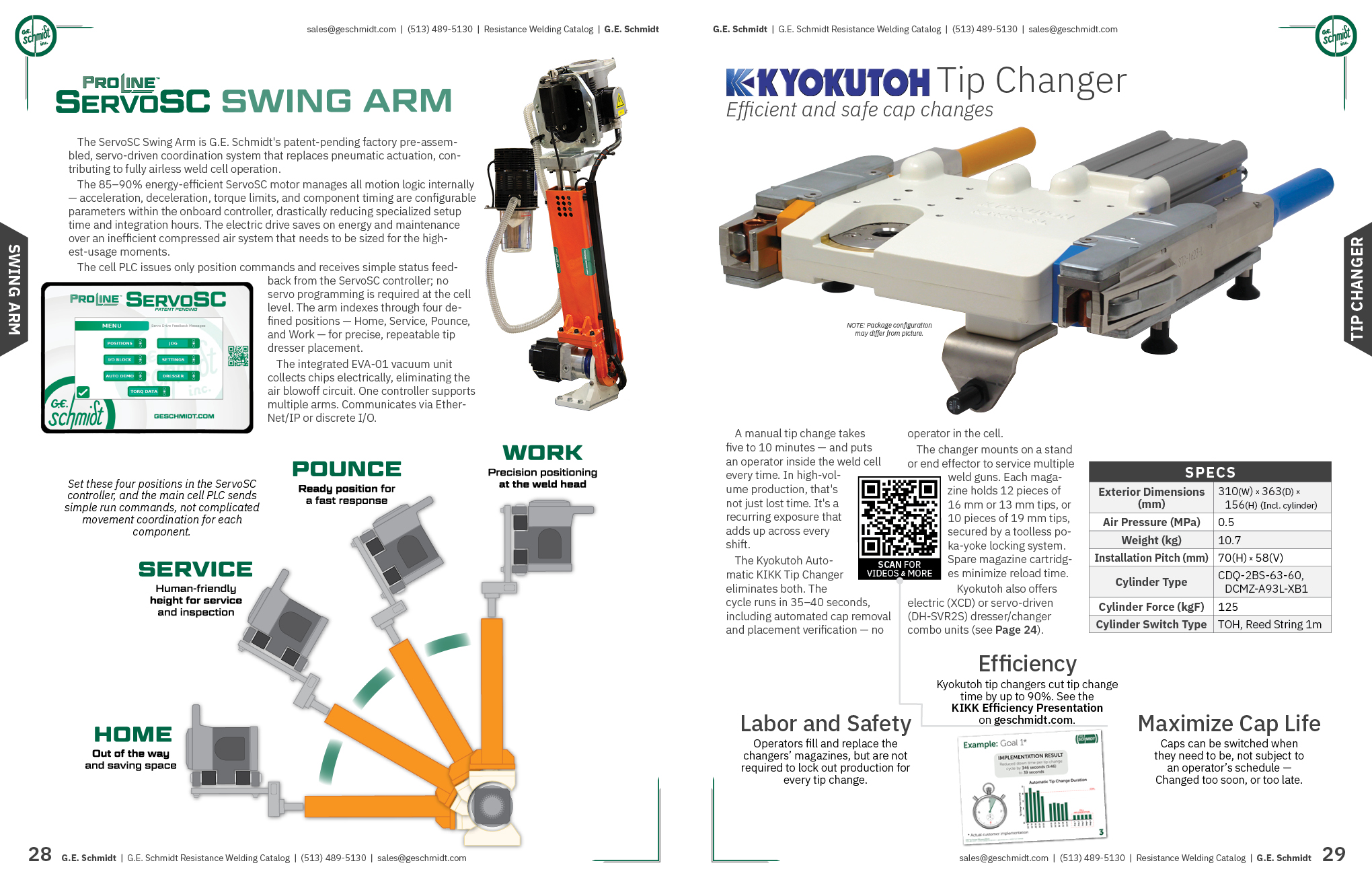

  • ServoSC servo-driven swing arm and Kyokutoh automatic tip changer, pages 28–29

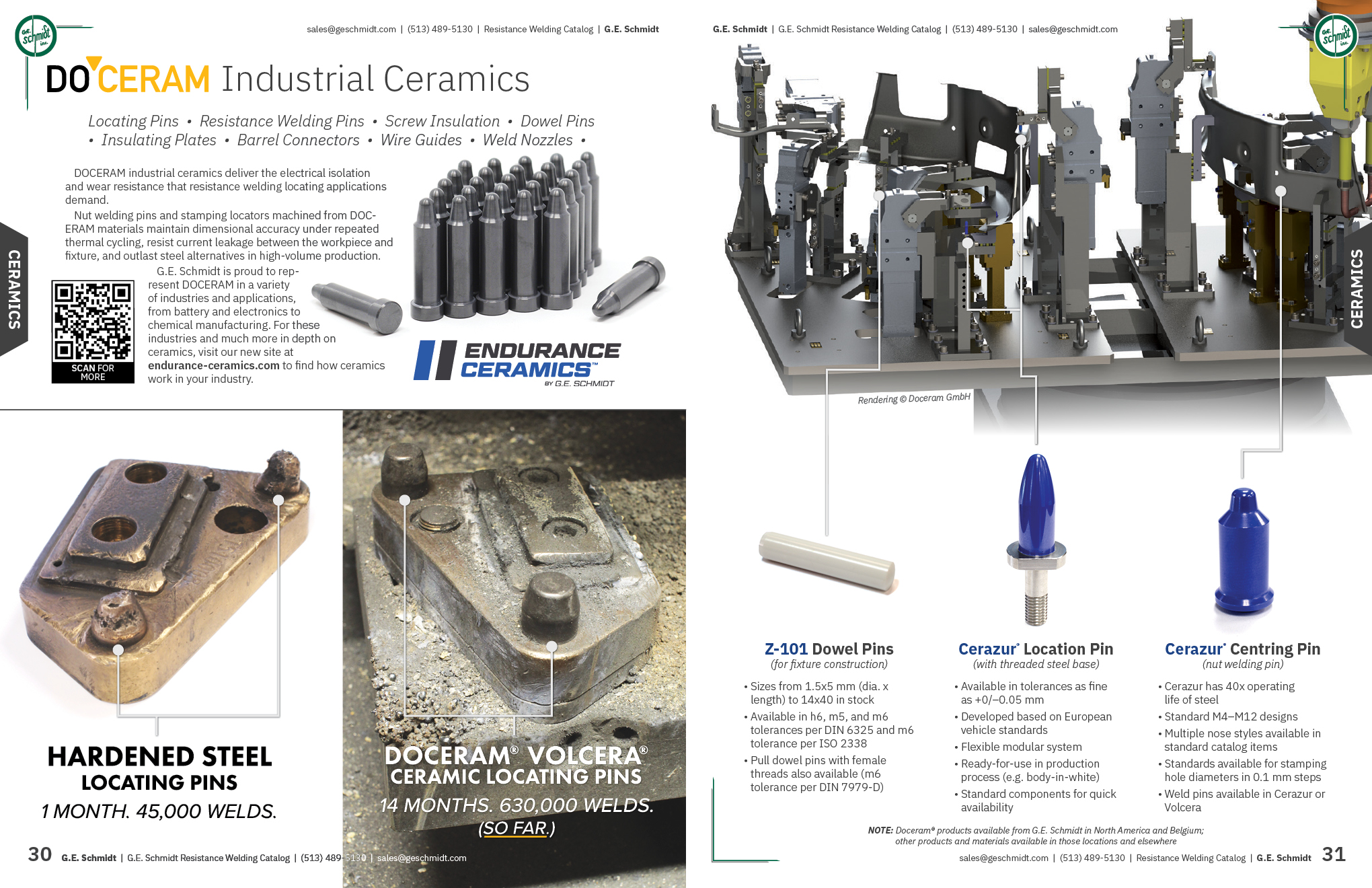

  • DOCERAM ceramic locating pins and nut welding fixture rendering, pages 30–31

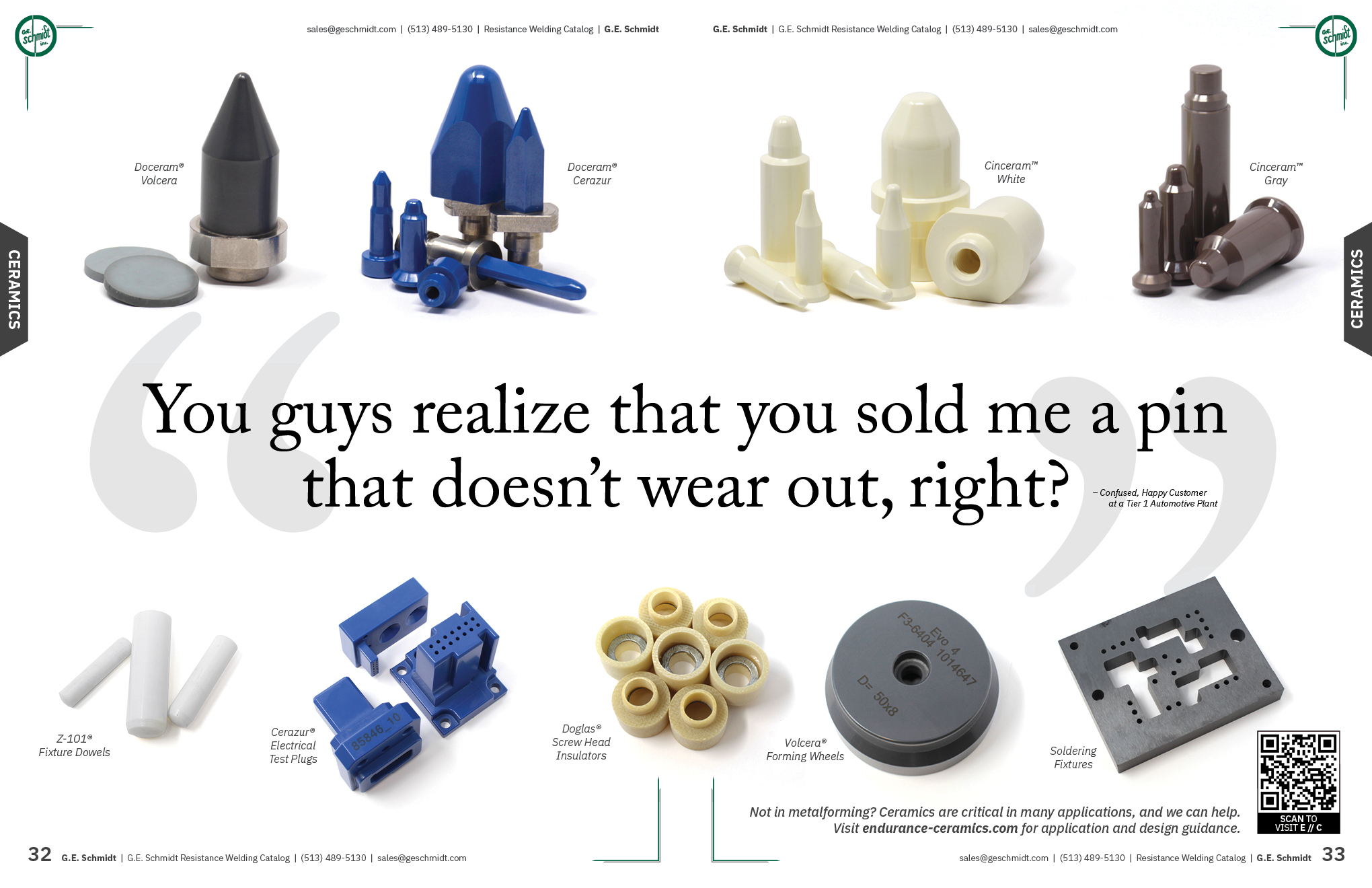

  • Ceramic and composite engineering materials, pages 32-33

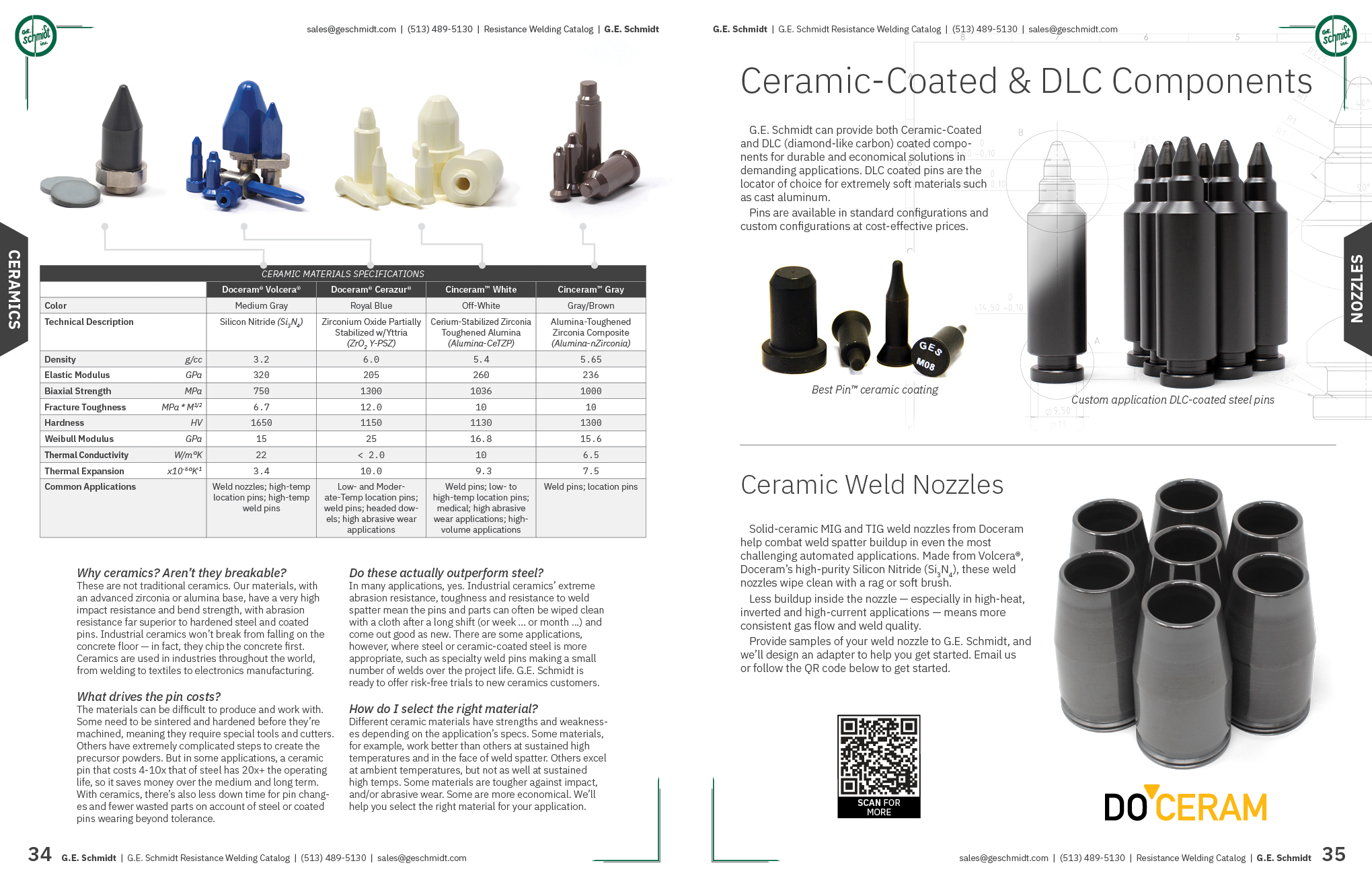

  • Industrial ceramics, DLC-coated locating pins and ceramic MIG/TIG weld nozzles, pages 34–35

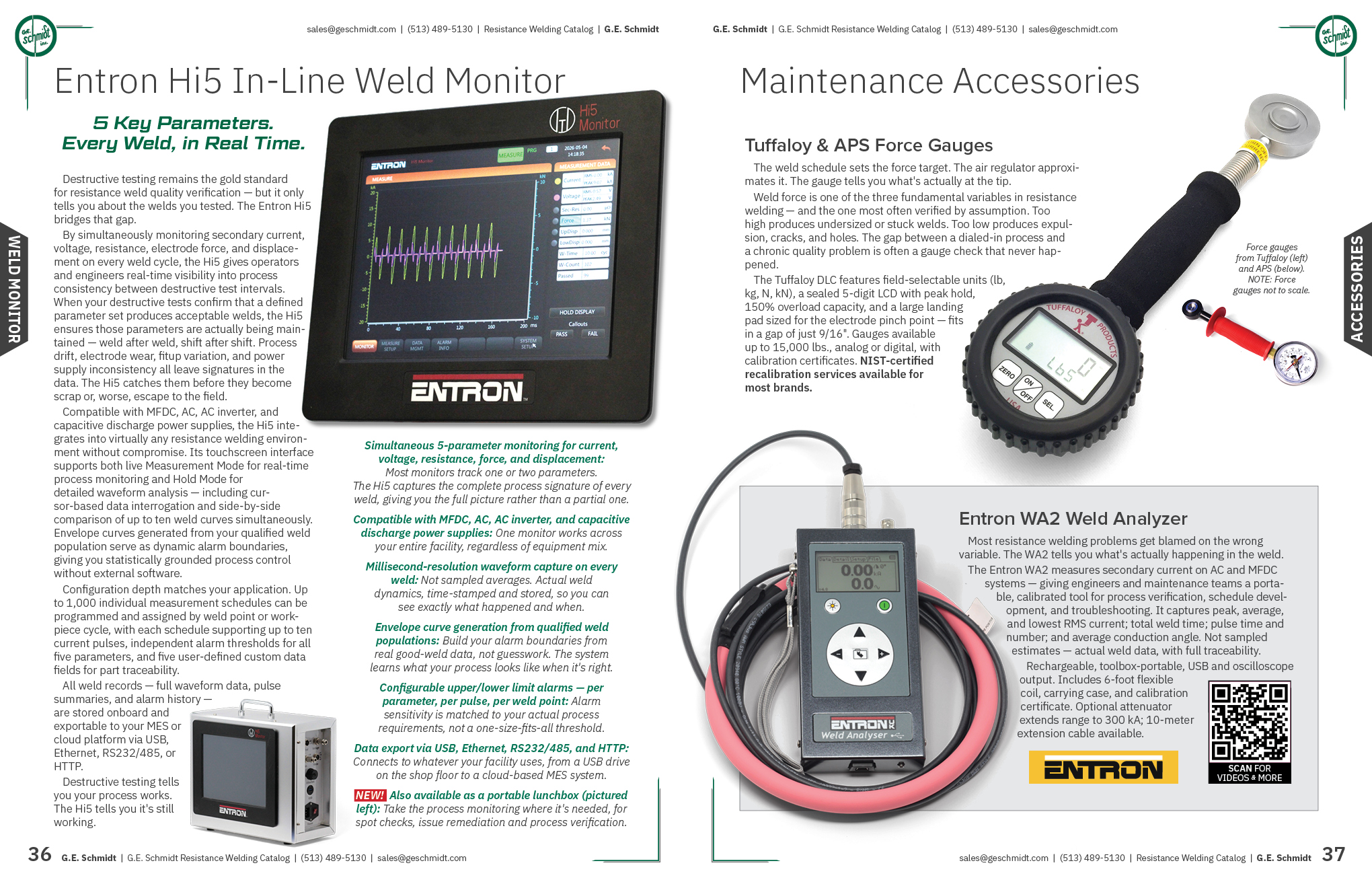

  • Entron Hi5 in-line weld monitor and force gauge accessories, pages 36–37

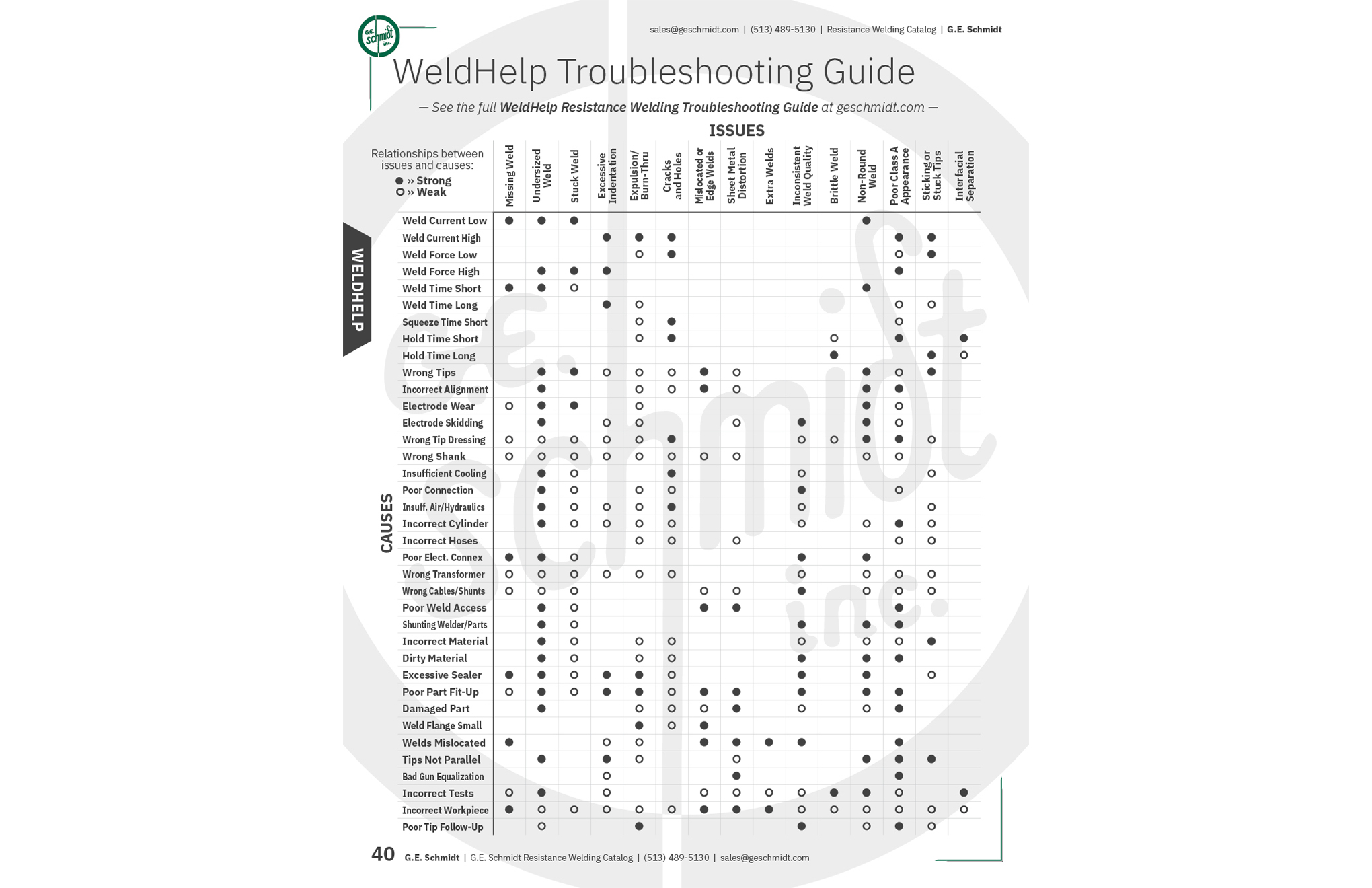

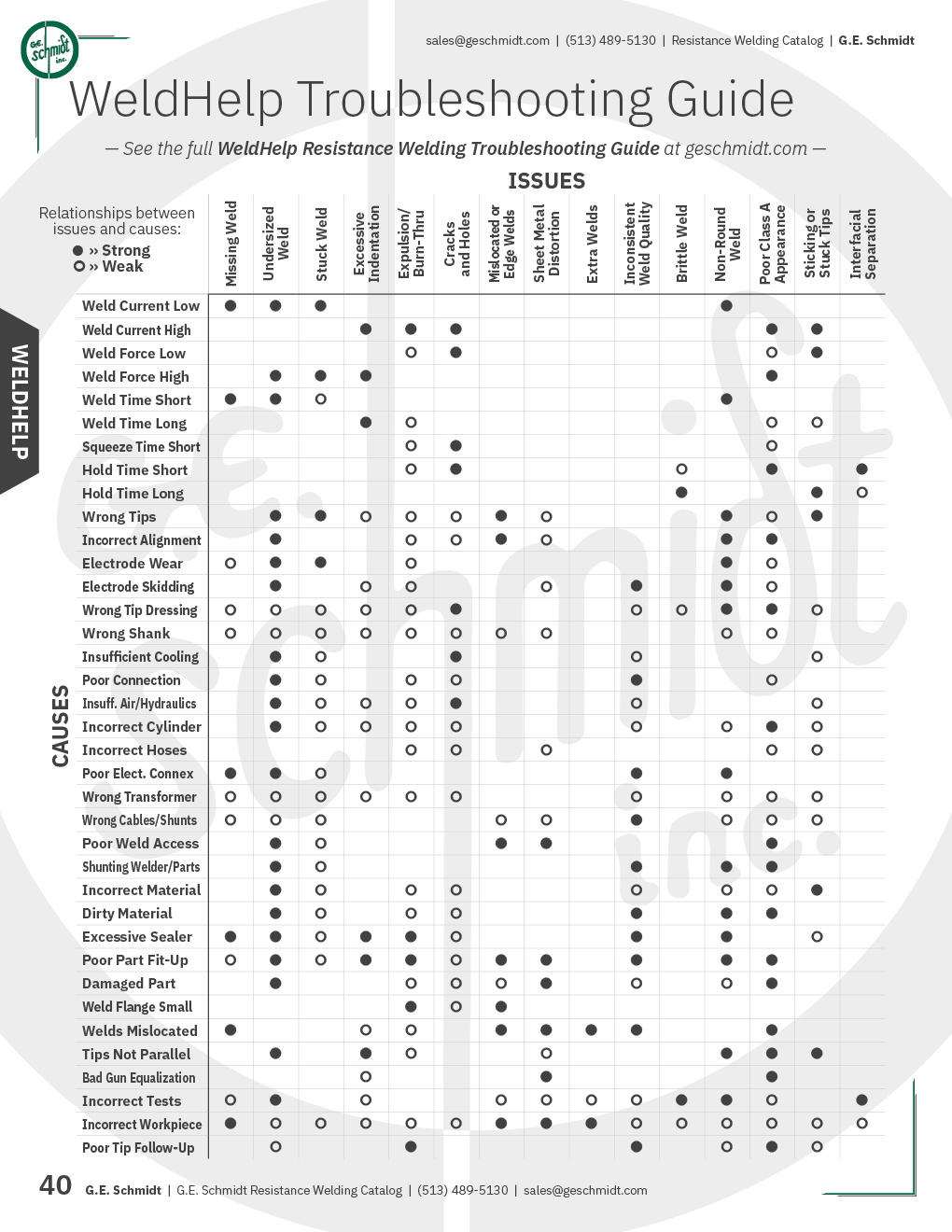

  • WeldHelp resistance welding troubleshooting cause-and-issue reference chart, page 40
